HYDRANT GATE VALVE

Print Friendly and PDFPrint Friendly

Product Details:

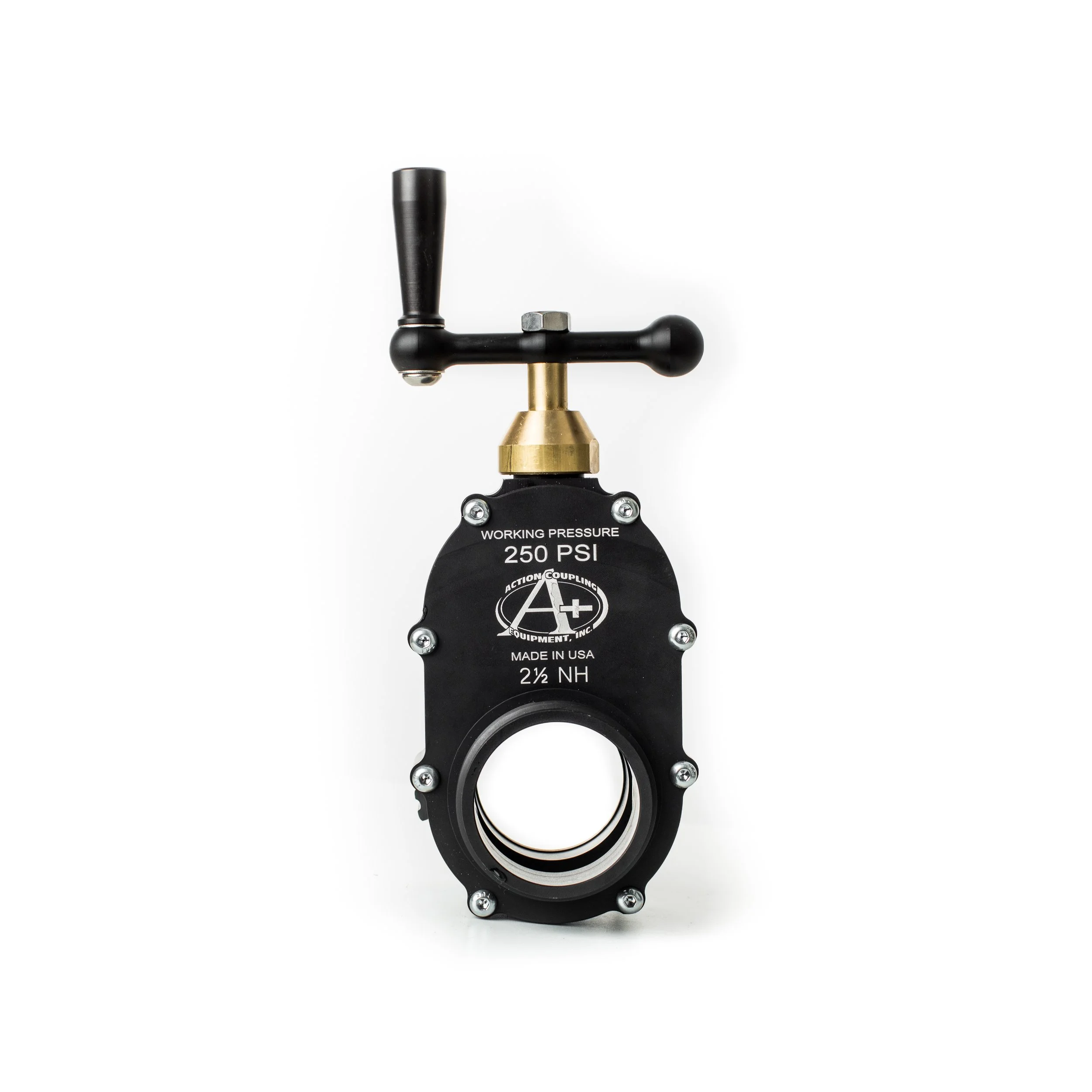

Action Coupling's new light weight, heavy-duty 2-1/2" NH Female X NH Male gate valve is made from 6061-T6 extruded aluminum. This valve is machined from solid billet aluminum (not cast). This valve offers excellent shutoff control directly off the hydrant or other water source. The unique design gates the water so that the valve body is not pressurized while the valve is closed. The non-rising spindle with full 2-1/2" waterway flow allows for complete range from open to closed in 11 revolutions. The surface finish is a Black Hard Anodized Type III Class 2 process that will provide years of protection. The extruded body and design allows for easy rebuild and maintenance of internal parts. Available in special threads.

Technical Data:

  • Length: 4-1/4"

  • Width: 5"

  • Height: 11"

  • Weight: 4-1/2 lbs.

  • Pressure Rating: 250 PSI

  • Safety Factor: 3

Materials:

  • Body, Handle and Gate: 6061-T6 Aluminum, Hard anodized Type III

  • Spindle and Packing Gland: CDA 360 Brass

  • Fasteners: 18-8 Stainless Steel

  • Gasket & O-rings: Buna N

  • Face Gasket: SBR
